Automatic door opener installation and selection guide
1. The location required for door operator installation: the height of the door frame needs to be over 100MM, and the thickness of the door frame needs to be over 2mm.

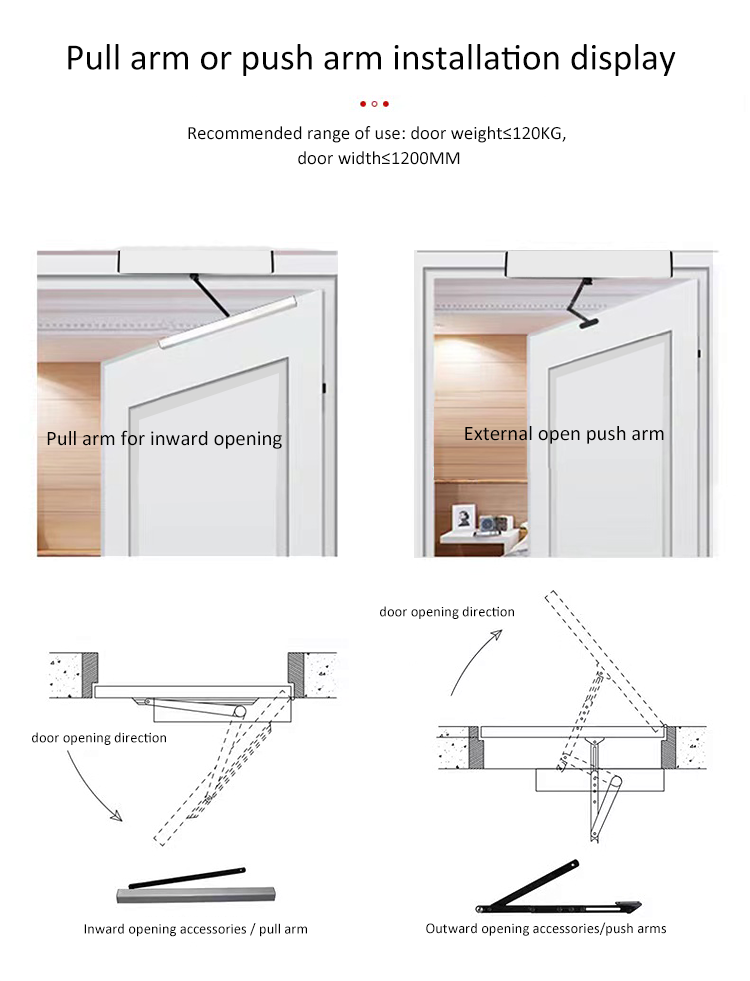

2. How to install the automatic swing door installation dimensions:
Note: The link between the rocker arm of the automatic swing door and the main shaft of the door machine: After the door machine is powered on and the door opening direction is confirmed, give the door machine a normal open signal. Connect the rocker arm to the main shaft, and do not rotate the position of the main shaft. When connecting the main shaft, first clean up the impurities in the special-shaped groove of the rocker arm, and then align the rocker arm with a hexagonal wrench about 2 mm in, and slowly screw it in place. Do not hit it with a hammer. Avoid damaging the reducer.
3. Adjustment of the length of the folding arm accessories of the automatic swing door: The rocker arm should be perpendicular to the door operator when the door body is closed, if not, it can be realized by adjusting the length of the folding arm connecting rod.
4. Requirements and suggestions for the installation and fixing of automatic swing doors:
Requirements: The screws fixing the main unit and the folding arm should be firm and can be disassembled repeatedly
Suggestion: If the installation conditions of the metal structure door body and frame allow, use a plate with a thickness of 2.0 or more. If the thickness is not enough, it is recommended to use rivet nuts and other wooden structures. If the plate can be stressed, it can be fixed with wooden bud screws. If not, it is recommended to Use the through-type installation to add metal plates or large flat gaskets on both sides.
Suggestions for the hood decoration of the automatic swing door operator: In order to maintain the overall sense of the decoration after installing the door operator, it is recommended to make an integral hood, which is required to be detachable.
Precautions for installation and commissioning
1. Wiring requirements: must comply with the standard, the wiring must be clean and not messy.
2. Configuration requirements: control accessories and Microwave Sensor.
3. Adjustment of the direction of the door operator: After the door operator is powered on, the shaft of the door operator should move in the direction of closing the door. If not, the direction of opening the door needs to be adjusted.
4. Regarding the adjustment of double-door synchronization and door machine parameters.
Advantages of automatic door opener:
1. Open and close the door in sequence;
2. Automatically stop when encountering obstacles;
3. The motor torque is larger;
4. Infrared protection interface;
5. Single and double door options;
6. The running protection time is adjustable;
7. Automatic door closing (time adjustable);
8. Sequential opening and closing times can be adjusted;
9. Automatic stop in case of blockage, automatic return in case of blockage;
10. Access Card reader and ground sensor interface;
11. Adopt the integrated design of the limit and door machine;
